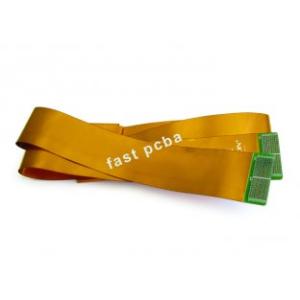

Yellow Solder Mask Lead Free HASL CEM - 3 PI, 0.15MM 1 Layer FPC / Flex PCB Assembly
(1)material: PI, 0.15MM
(2) Layer account:1
(3) solder mask: yellow
(4) surface: ENIG
(5) size: 15mm*45mm
(6) place of Original: China
(7)FASTPCBA
(8) model number: FASTPCBA FPC7
(9) certification: UL
(10) MOQ: 10pcs
(11)Price:
(12)Packaging Details: ESD
(13)Delivery Time: 1 week
(14)Payment Terms: T/T in advance
(15)Supply Ability: 20Kpcs/month for flex cable
**********************************************************************************************************************
Reference- Our production capability for Rigid PCB:
1) layer: 1-22
2) Board finished thickness: 0.2mm-7.0mm
3) Material: FR-4, CEM-3, High TG, FR4 Halogen Free, Rogers.
4) Max. Finished board size: 580mm*900mm
5) Min hole size: 4mil(0.1mm)
6) Min trace width/space: 3.5mil/3.5mil
7) Surface finishing/treatment: HASL/Lead free HASL, Immersion Gold, Gold plating, Immersion silver, immersion Tin, OSP.
8) Copper thickness: 0.5oz to 6oz.
9) Solder mask color: Green/Yellow/Black/White/Red/Blue.
10) Copper thickness in hole: >18um
11) Inner packing: Vacuum packing/plastic bag
12) Outline tolerance:+/-0.13mm
Hole size tolerance: PTH+/-0.076mm NPTH:+/-0.05mm.
13) Quality ensure: UL approval, TS16949:2002
14) Special requirements: Buried and Blind vias, impedance control, via plug, BGA soldering, Gold finger.
15) Profiling: punching, Routing, V-cut, Beveling.
16) Provides OEM services to all sorts of printed circuit board assembly as well as Electronic encased products, and PCBA application from communication, medical, security and industrial control.
17) Assembly capacity:
Min soldering size: 0201
Capacity/day: 700, 000 points
